Viewing and Analyzing Test Cases

The Test Manager enables you to view and analyze all the test cases created in the Mapping Manager and Metadata Manager at one place.

To view and analyze test cases in the Test Manager, follow these steps:

1. Go to Application Menu > Data Catalog > Test Manager.

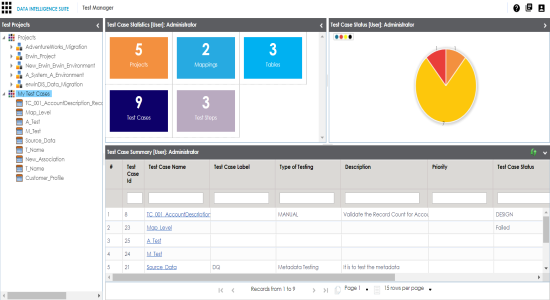

   Project Statistics, Project Test Case Status and Project Summary are displayed on the right pane.

   Project Statistics
   Projects: It displays the count of projects in the Test Manager
   Mappings: It displays the count of mappings with at least one map level test case
   Tables: It displays the count of tables with at least one metadata level test case
   Test Cases: It displays the count of total number of test cases in the Mapping Manager and Metadata Manager
   Test Steps: It displays the total count of validation steps in all the test cases

The Project Test Case Status displays the test case statuses in a pie chart. The test case status can be:

• Passed
• Failed
• Unspecified
• Need Analysis
• No Run
• Design

The Project Summary displays the list of projects.

Note: Project names follow a nomenclature:

Projects containing metadata level test cases follow, <System Name>_<Environment Name>.

Projects containing project level test cases and map level test cases have the same name as that of the project in the Mapping Manager.

The metadata level test cases are created in the Metadata Manager. The project level test cases and map level test cases are created in the Mapping Manager.

2. Click the desired project.


   Test Case Statistics, Test Case Status, and Test Case Summary are displayed on the right pane.

3. Click the test case to view its details.

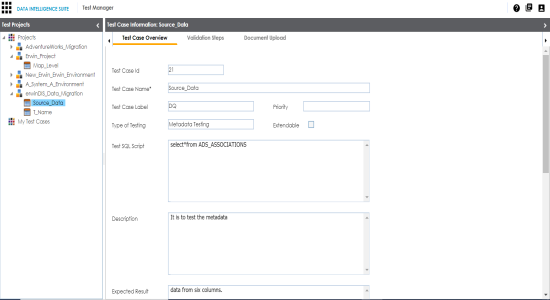

You can see the Test Case Overview.


4. Click the Validation Steps tab to view the validation steps in the test case.
5. Click the Documents Upload tab to view the uploaded documents in the test case.
6. Expand the My Test Cases node to browse the test cases created by you (logged in user).
